Circadian Sky
Casambi Controls Guide
Setup, Configuration & Circadian Profile Management
Circadian Sky
Getting Started with Casambi
1. Download the Casambi App
The Casambi app is available for free on both iOS and Android devices. Search for "Casambi" in the App Store or Google Play Store.
2. Create or Join a Network
When you open the app for the first time, you'll need to either create a new network or join an existing one. For new installations, tap "Create new network".
Note: Innerscene fixtures with factory pre-commissioning will already be configured with network settings. Contact your installer for network access credentials.
Purchased Wall Dimmers from Innerscene? When purchasing Casambi wall dimmers as part of your order, the dimmer and fixtures may already be paired to a pre-configured network created prior to shipping. Locate and save the network password found inside the dimmer packaging — you'll need this to modify the network (add scenes, timers, etc.) in the Casambi app.
3. Discover Nearby Fixtures
Once connected to a network, the app will automatically discover nearby Casambi-enabled fixtures. You will see one "luminaire" appear for each Primary fixture you purchased and powered on. Secondary fixtures automatically synchronize with their Primary and do not appear separately in the app.
Understanding Primary & Secondary Fixtures
Each Innerscene installation uses Primary and Secondary fixtures:
- Primary fixtures contain an integrated Casambi controller and serve as the "leader" for a zone
- Secondary fixtures receive wireless signals from the Primary and follow its settings
- Position the Primary fixture centrally to maximize wireless range (up to 50ft / 15m)
- All fixtures in a zone should be on the same Casambi network
Casambi Support & User Guides:
Circadian Sky
Basic Controls
Adjusting Brightness & Color

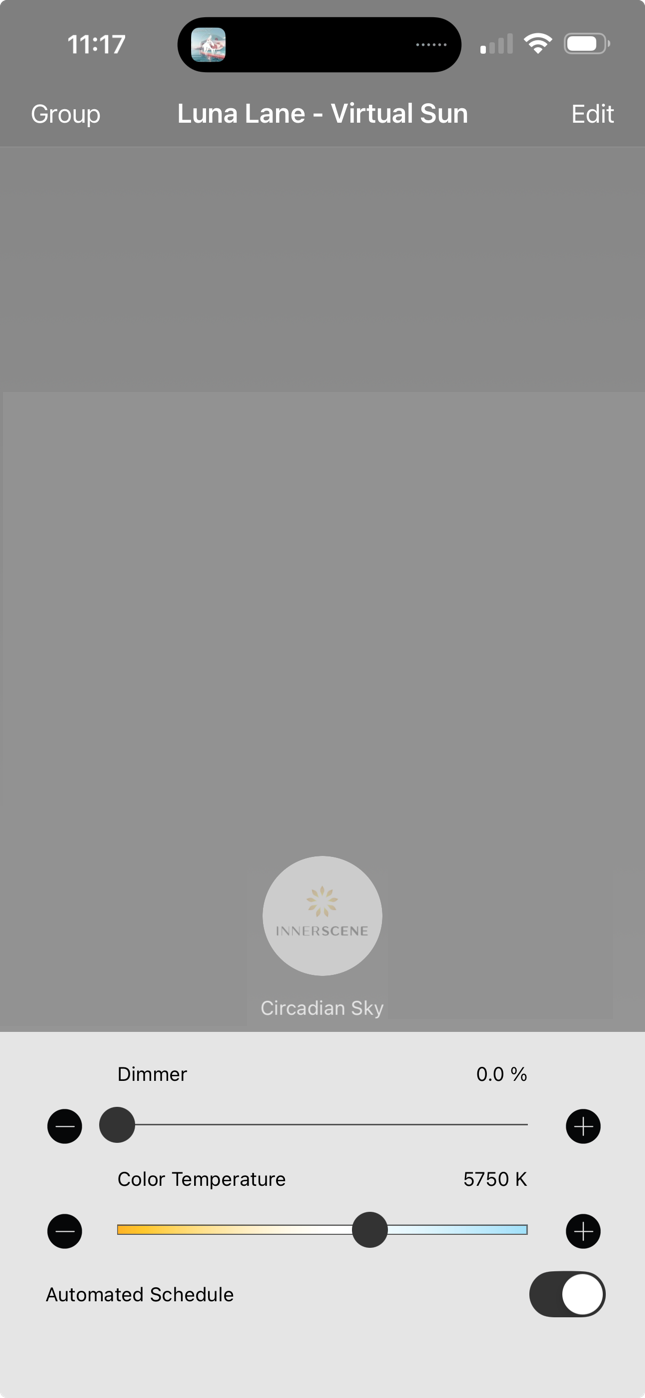

Long press (tap and hold) on any luminaire to open its control panel. This reveals sliders for brightness (0-100%) and color temperature.
💡 Tip: A quick tap toggles the light on/off. Long press opens the full control panel.
Adjusting Color Temperature
Innerscene Circadian Sky fixtures support an extended CCT range from 2,200K to 40,000K. Use the color temperature slider in the Casambi app to adjust warmth. The app displays its standard range, but Innerscene maps these values to the fixture's full extended range for optimal circadian effect.
2,200K
Warm
Warm
6,500K
Daylight
Daylight
40,000K
Sky Blue
Sky Blue
CCT Mapping (Casambi → Innerscene):
| Casambi | Innerscene | Casambi | Innerscene |
|---|---|---|---|
| 2,200K | 2,200K | 6,500K | 6,500K |
| 3,000K | 3,000K | 7,000K | 8,649K |
| 4,000K | 4,000K | 7,500K | 18,811K |
| 5,000K | 5,000K | 8,000K | 40,000K |
Values above 6,500K map to Innerscene's extended range for natural sky simulation.
Quick On/Off
Quick tap on any luminaire icon to toggle it on or off.
Grouping Fixtures
Only needed if you have multiple Primary fixtures (multiple Innerscene wireless groups). Go to "Groups" tab → tap "+" → select fixtures → name the group.
Casambi App User Guide:
Circadian Sky
Scenes & Scheduling
Creating Scenes
Scenes save lighting configurations that can be recalled instantly. Set brightness/CCT → "Scenes" tab → "+" → name and save.
Automated Scheduling Options
Option 1: Innerscene Built-in
Built-in scheduling via WiFi interface. Connect to fixture's WiFi → access web interface → configure schedules.
Option 2: Casambi Timers
Create automated schedules in the app: "Timers" tab → "+" → select scene → set time (fixed/sunrise/sunset) → choose days → enable.
Circadian Sky

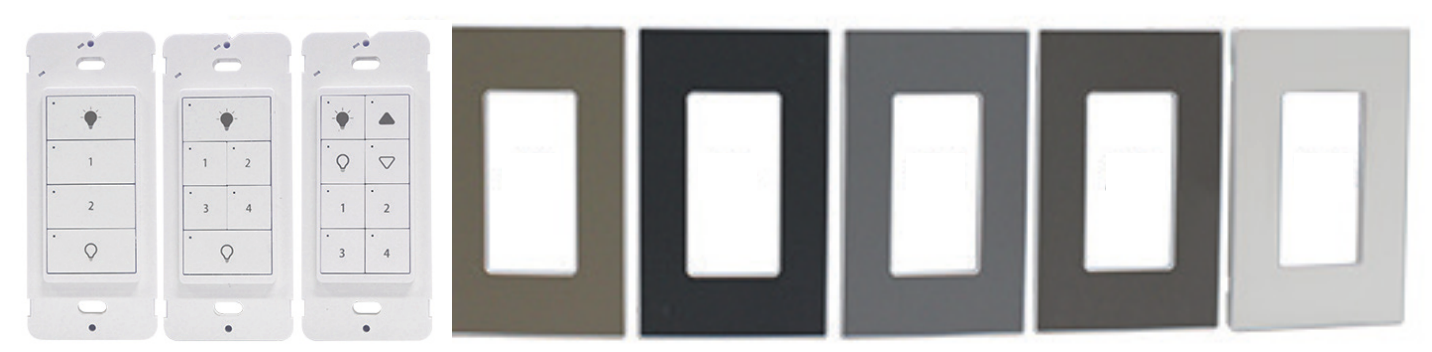

Wall Dimmer Configuration
Casambi wall dimmers can trigger specific scenes with a button press, allowing users to quickly switch between lighting presets or enable automated scheduling.
Creating an "Enable Schedule" Scene:
- Select the Innerscene fixture in the app
- Toggle "Automated Schedule" ON
- Go to "Scenes" → tap "+"
- Name it (e.g., "Enable Schedule")
- Save — captures the ON state
Linking to Wall Dimmer:
- Go to "Switches" in the app
- Select your wall dimmer
- Choose which button to configure
- Set action to "Activate Scene"
- Select your schedule scene
Note: When "Automated Schedule" is enabled, manual adjustments are overridden. Create a scene with "Automated Schedule OFF" for manual control.
Circadian Sky
Circadian Lighting Profiles
What is Circadian Lighting?
Circadian lighting mimics natural daylight progression, supporting your body's rhythms. Cool, bright light promotes alertness; warm, dim light helps prepare for sleep.
Casambi Built-in Profile
- Create a new Scene
- Go to Scene Settings (gear icon)
- Select "Circadian" profile type
- Adjust the profile curve
- Save and activate
Custom Animations
- Create intermediate scenes (2,700K, 3,500K, etc.)
- Go to "Animations" tab
- Add a new animation
- Use sunrise/sunset or fixed times
Example Profile: 6AM → 50%, 2,700K | 9AM → 100%, 6,500K | 12PM → 100%, 6,500K | 6PM → 50%, 2,700K
Innerscene Pre-Configured Profiles
Fixtures with factory commissioning (P0001, P0002) include pre-configured circadian profiles. Customize via the fixture's WiFi interface or replace with Casambi profiles.
Circadian Sky
Troubleshooting
Fixture Not Appearing in App
- Ensure Primary fixture is powered on
- Check Bluetooth is enabled
- Move closer (within 30ft / 10m)
- Close and reopen the Casambi app
Fixture Not Responding
- Check connected to correct network
- Verify fixture is assigned to network
- Power cycle (off 10 sec, then on)
- Check for app updates
Secondary Fixtures Not Following Primary
- Ensure same wireless group
- Restart all fixtures
- Check wireless range (~50ft)
Wireless Groups: innerscene.com/SpecHelp/CircadianSky/wireless_groups
Innerscene Support:
Casambi Support:support.casambi.com
