VS Spec Sheet

Date

Project

Specifier

Type

Description

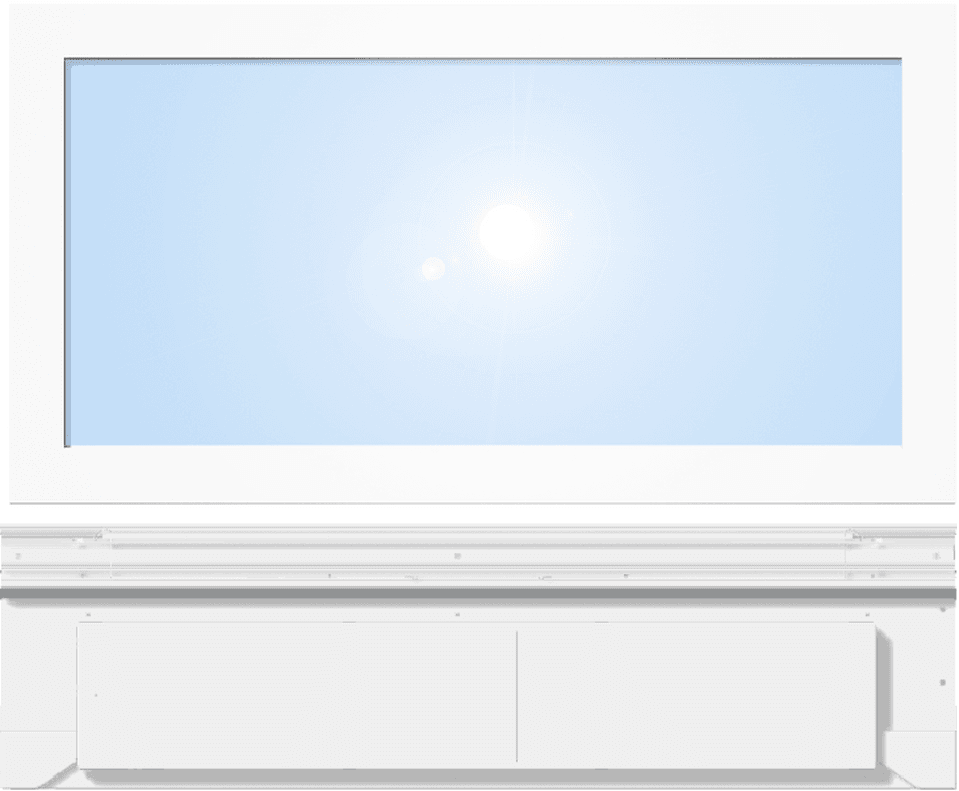

Innerscene's Virtual Sun system offers cutting-edge simulations of natural daylight and moonlit skies at any time. Harnessing patented technology, it offers lifelike views through an infinite-depth skylight or window, aligns with circadian rhythms, and boasts straightforward installation.

The advanced technology simulates physiological and emotional responses akin to natural daylight without exterior access. Applicable in fields like education, entertainment, healthcare, and more.
Innerscene's system removes design limitations, offering a tailored virtual daylight experience that enhances well-being.

FIXTURE LISTINGS & CERTIFICATIONS

MODEL

Virtual Sun

MOUNTING KIT

ACI - ACOUSTICAL TILE INDIVIDUAL
ACA - ACOUSTICAL TILE ARRAY
DC - DRYWALL CEILING
WV - WALL VERTICAL
WH - WALL HORIZONTAL
C1 - CUSTOM

TRIM FINISH

WH - WHITE RAL9010 MATT^*
C2 - CUSTOM^**

POWER SUPPLY

INT - INTEGRAL
IR - IC-RATED & REMOTE DRIVER

LIGHTING CONTROL

CSB - CASAMBI
DMX - DMX512
DT - DALI-2 DT8
10V1C - 0-10V DIM-TO-WARM
10V2C - 0-10V 2-CHANNEL
C5 - CUSTOM

PROGRAMMING CODE

P0000 Dimmer ONLY
P0001 - WALL-CLOCK BASED cycle
P0002 - SOLAR-CLOCK BASED cycle

CURRENT SPEC CODE: VS-DC-WH-INT-CSB-P0000

^* FIELD-PAINTABLE

^{* *} ANTI-MICROBIAL AVAILABLE

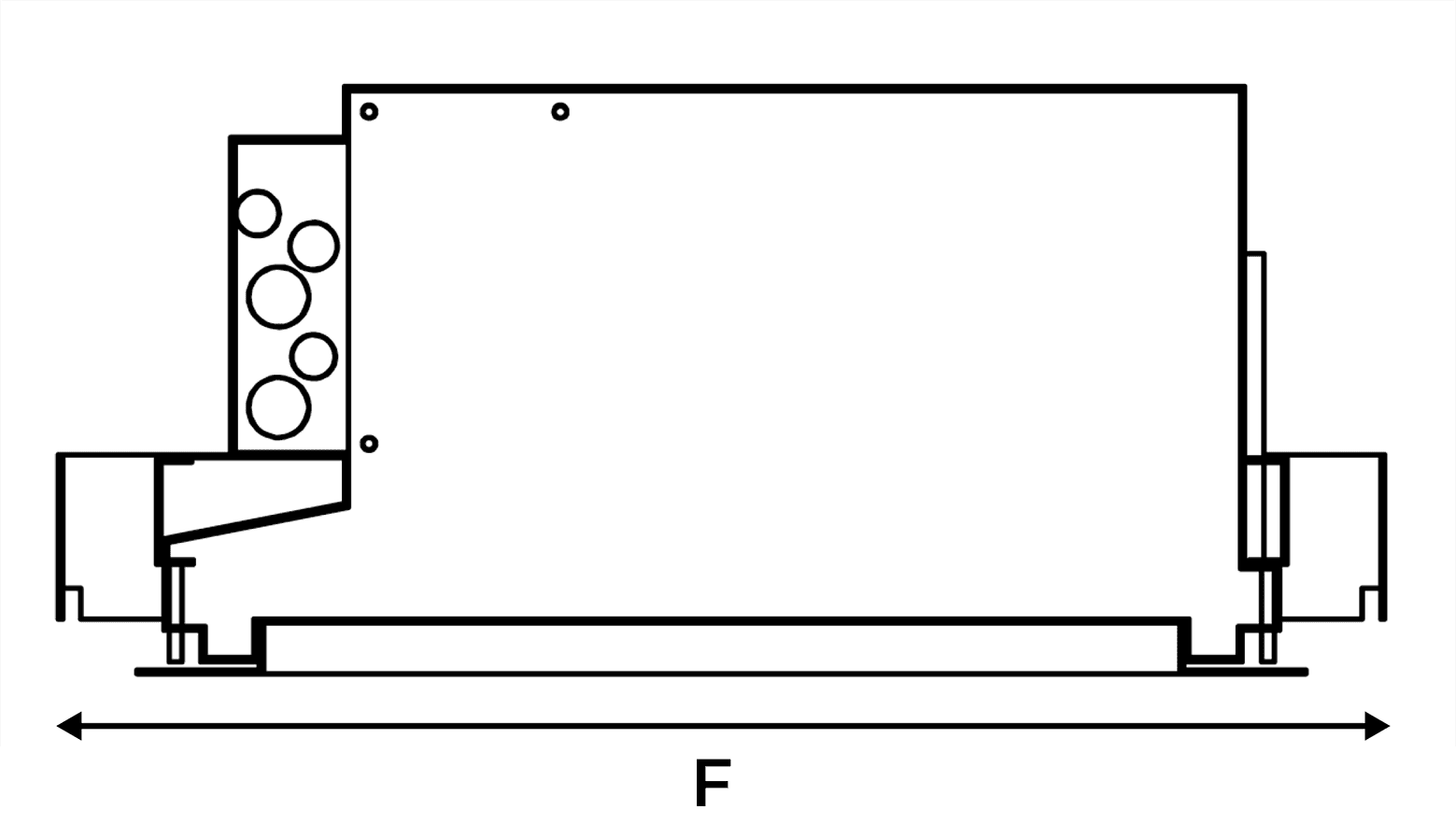

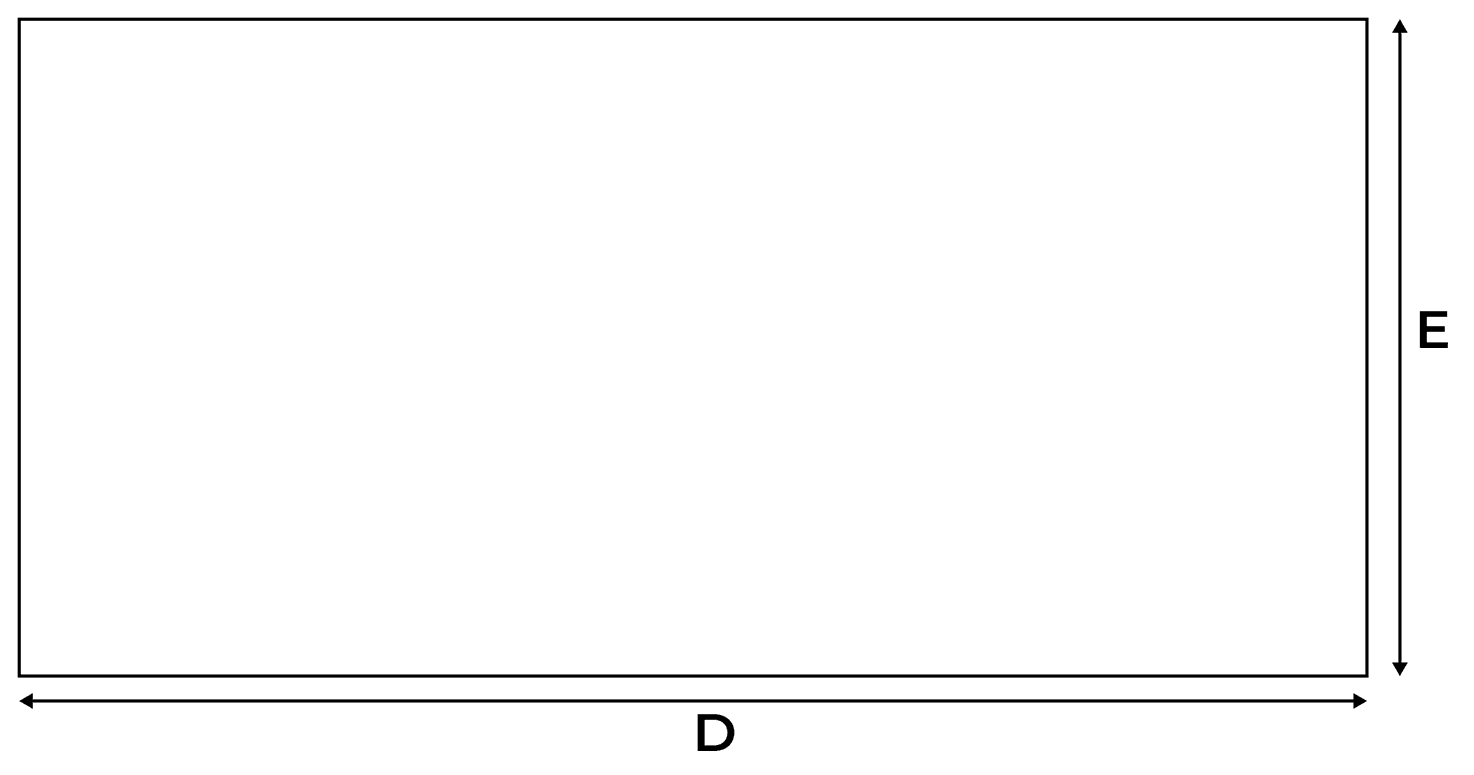

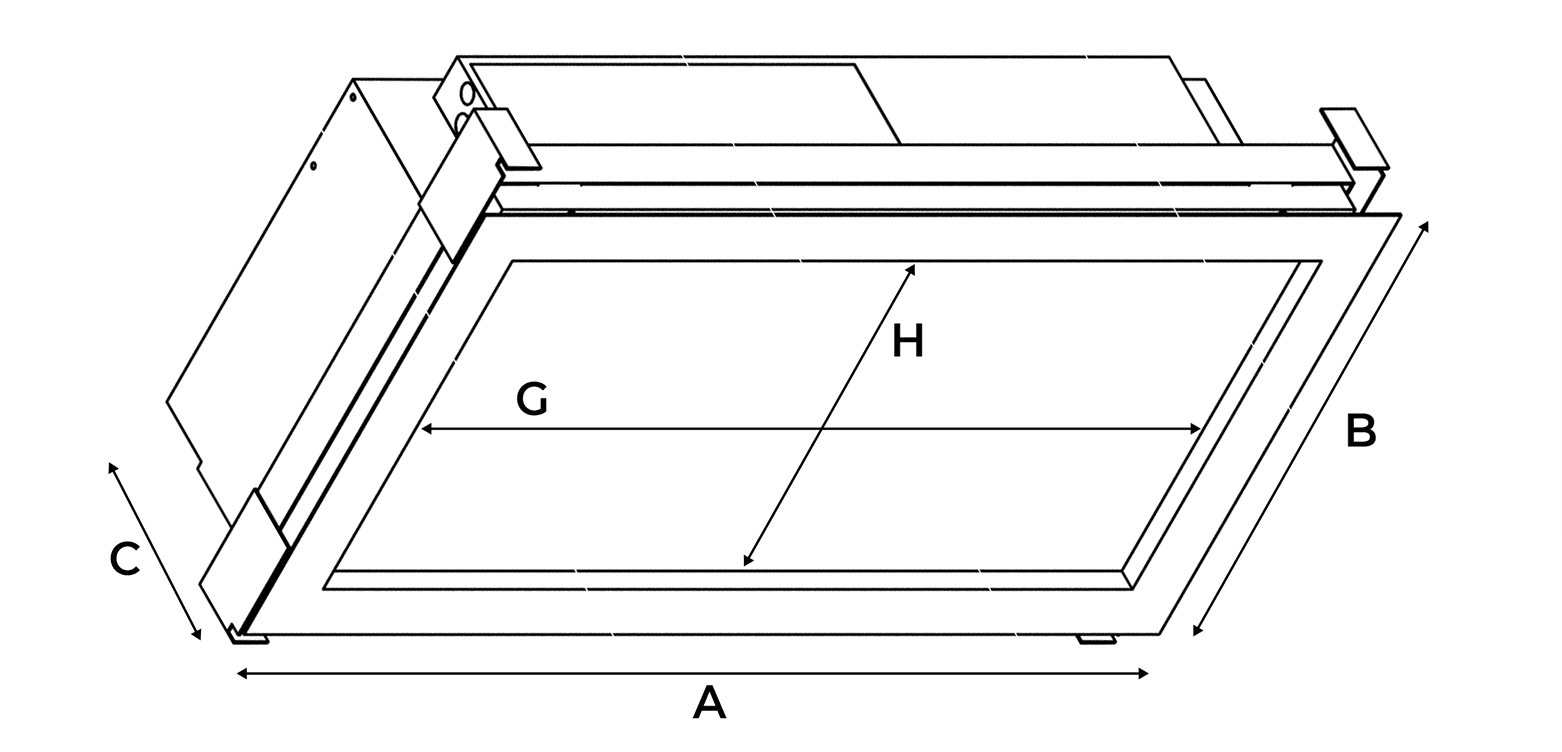

DIMENSIONS (inches)

	LENGTH	WIDTH	DEPTH	DRYWALL CUT-OUT		JOIST SPACING FACE-FACE	WINDOW DIMENSIONS
	TRIM DIMENSIONS		DEPTH	DRYWALL CUT-OUT		JOIST SPACING FACE-FACE	WINDOW DIMENSIONS
	A	B	C	D	E	F	G	H
DRYWALL	41ʺ	21.7ʺ	11ʺ	38.3ʺ	20.9ʺ	21.5ʺ to 24.5ʺ	36.1ʺ	16.8ʺ
ACT TIGHT ARRAY	48ʺ	24ʺ	11ʺ	N/A	N/A	N/A	36.1ʺ	16.8ʺ
ACT INDIVIDUAL FIXTURE	48.9ʺ	24.9ʺ	11ʺ	N/A	N/A	N/A	36.1ʺ	16.8ʺ
ACT BEVELLED	47.75ʺ	23.75ʺ	15ʺ	N/A	N/A	N/A	36.1ʺ	16.8ʺ

Specifications

CRI	90+
DELIVERED LUMENS	IC-NON-IC 4,455 LUMENS IC-RATED 3,796 LUMENS
PERCEPTIBLE FLICKER	FLICKER-FREE • WELL V2 FEATURE 8 COMPLIANT
CAMERA FLICKER	25KHZ PWM DIMING INSURES NO FLICKER EVEN ON MOBILE PHONE CAMERAS
VERTICAL MOUNTING	STUD OR MANSORY WALLS

INSULATION CONTACT	NON-IC (STANDARD) IC (OPTION)
INTEGRAL DRIVER	YES, REMOTE OPTIONAL
ELECTRICAL	90-277V 50-60HZ PF > 0.9
COLOR TEMPERATURE	TUNABLE 3,200K TO 40,000K
AMBIENT TEMP RANGE	32-104°F (NON-IC), 32-77°F (IC), NON-CONDENSING
WATTAGE	NON-IC 155W / IC 115W

Date

Project

Specifier

Type

ADDITIONAL SPECIFICATIONS

HORIZONTAL MOUNTING	ACOUSTICALE TILES (ACT) DRYWALL CEILING (CULUS LISTED)
ENVIRONMENTAL RATING (PROTECTION CLASS (IP) )	IP20 STANDARD

WARRANTY	5 YEARS
DIMENSIONS	38.2ʺ × 20.7ʺ DEPTH 10.5ʺ
WEIGHT	PRODUCT 77 LBS / BOXED 163 LBS
STANDARDS	UL 1598, TÜV, UL LISTED
SKYSYNC COMPATIBLE	REAL-TIME SKY COLOR SYNC VIA BLE

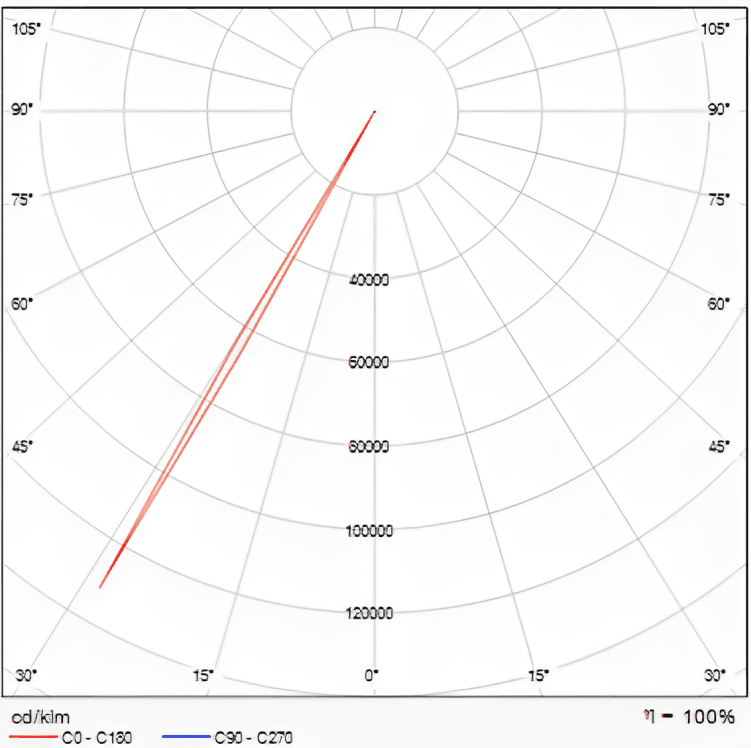

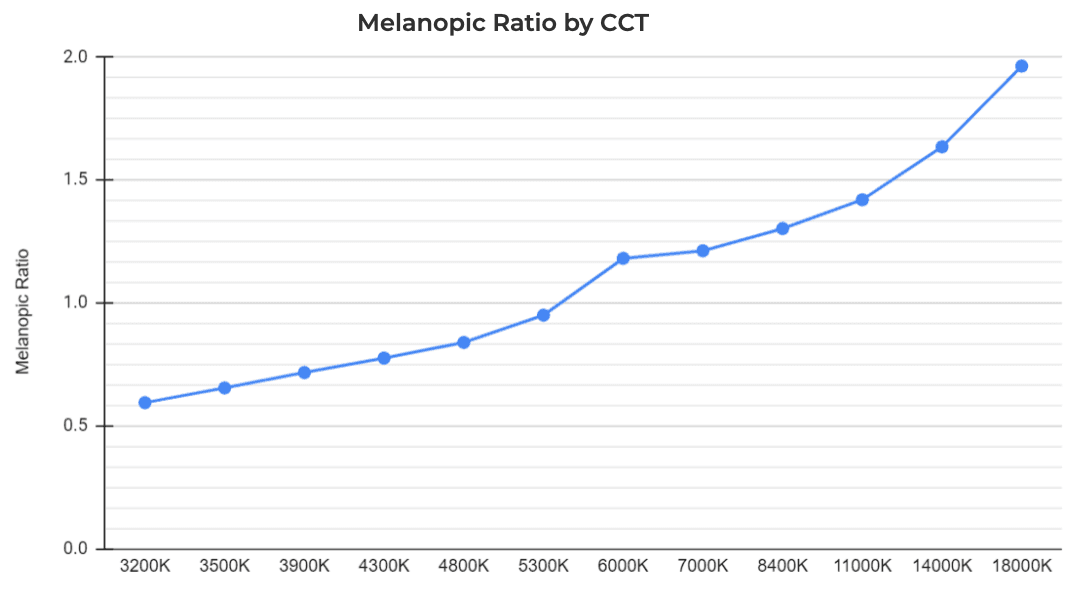

POLAR CURVES

CRI (RA) VS R9 BY CCT

TM30 COLOR FIDELITY

3,396K

PLOT

COLOR VECTOR GRAPHIC (CVG)

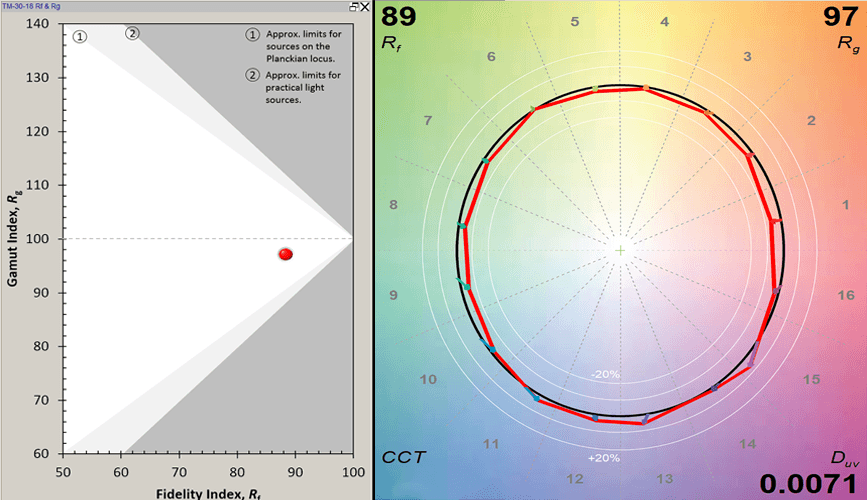

5,058K

PLOT

COLOR VECTOR GRAPHIC (CVG)

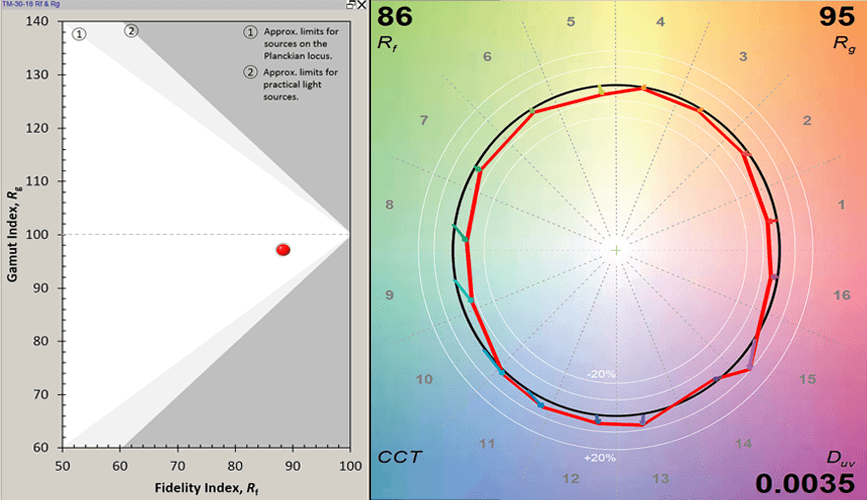

8,481K

PLOT

COLOR VECTOR GRAPHIC (CVG)

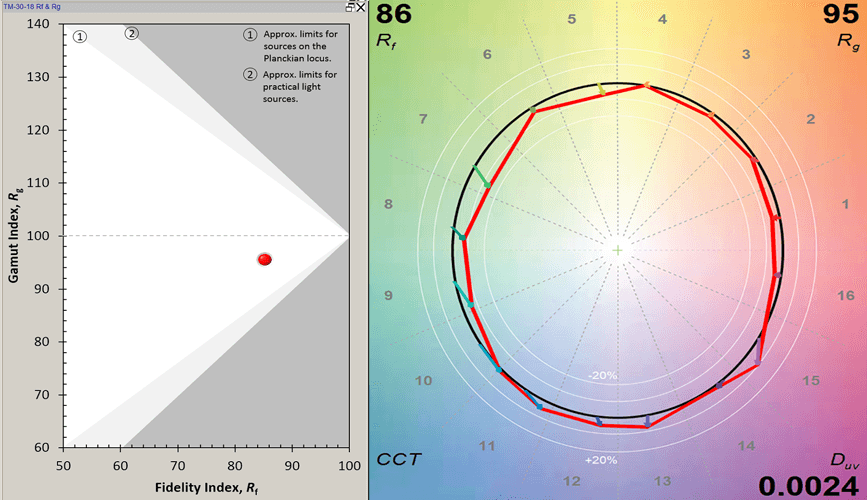

11,858K

PLOT

COLOR VECTOR GRAPHIC (CVG)

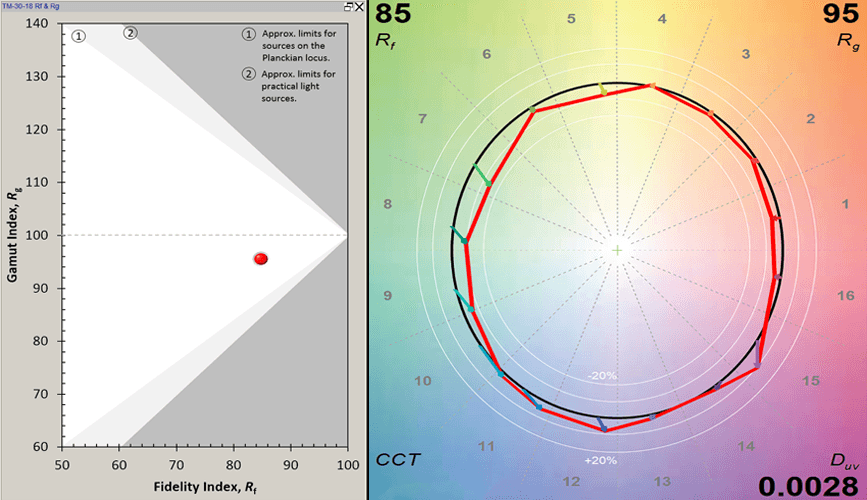

14,695K

PLOT

COLOR VECTOR GRAPHIC (CVG)

19,581K

PLOT

COLOR VECTOR GRAPHIC (CVG)

Date

Project

Specifier

Type

PROGRAMMING CODE

Programming Codes are used to load predefined settings and schedules onto Primary fixtures prior to shipping and on site. (*)

P0000 - Dimmer Only. When selected Primary fixtures will only respond to external dimmer controls (0-10V, DMX, DALI, Casambi).
P0002 -Default programming. Learn more by visiting https://innerscene.com/programCode?code=P0002

Find/create other programming schedules by visiting https://innerscene.com/programCode

^*Secondary fixtures use Innerscene's wireless synchronization to mirror the primary unit when set to the same zone.

PROGRAMMING CODE EXAMPLE FOR P0002 :

COLOR TEMPERATURE RANGE

Colors of white light are referred to as CCT in Kelvin, lower numbers are warmer tones, higher numbers are cooler or bluer tones. There is no upper limit of Kelvin. However, in Non-Innerscene products may have blue skies with low color rendition leading to color casts which can be unpleasant.

40,000K : Innerscene's deepest blue sky
20,000K : Blue Sky
6,500K : Pure White - highest color temperature for commercial lighting
3,500-4,000K : Commercial White
2,700-3,000K : Warm White - comparable to bright incandescent lamps
2,200K : Warmest hues of sunrise or sunset
